- Type HP-2700 Hybrid HVOF spray system is the nozzle external combustion type high velocity flame spray system.
- This combustion is based on propane gas and oxygen, but air is also used to assist combustion and increase flame jet speed.
- The speed of flame jet generated by the combustion of propane, oxygen and air reaches a high speed of 2700 ft/sec.

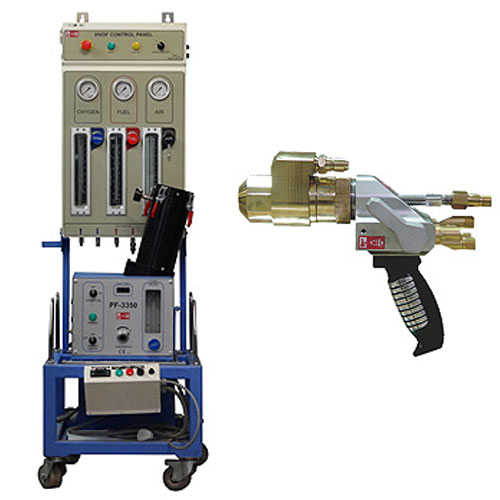

HYBRID HVOF SPRAY SYSTEM
TYPE HP-2700
HYBRID HVOF SPRAY GUN
- Low fuel consumption
- High thermal efficiency
- Long serviceable gun parts
- Compatible with both Air Cooled HP-2700 Gun and a high performance Water Cooled HP-2700(Hybrid) Gun.
- Separation of electrical components from the oxygen, fuel and water modules.
- Electrical safety is enhanced through the use of intrinsically safe components.
- Separation of electrical voltage sources into discrete wire-ways.
- Safety interlock between air flow and fuel gases, flash back arrestor, NRV

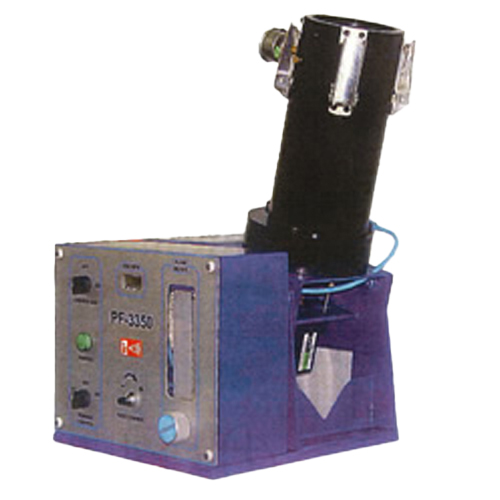

TYPE PF-SB-3355-A
POWDER FEEDER
- Capacity: 3.3 Liters
- Small and light portable base
- Heating Jacket optional
- Supply pressure - 2.5 bar or 9 bar
- Calibrated flow tube scale in SCFH and SLPM
- Manual control of carrier
- Can be integrated with other make Panels

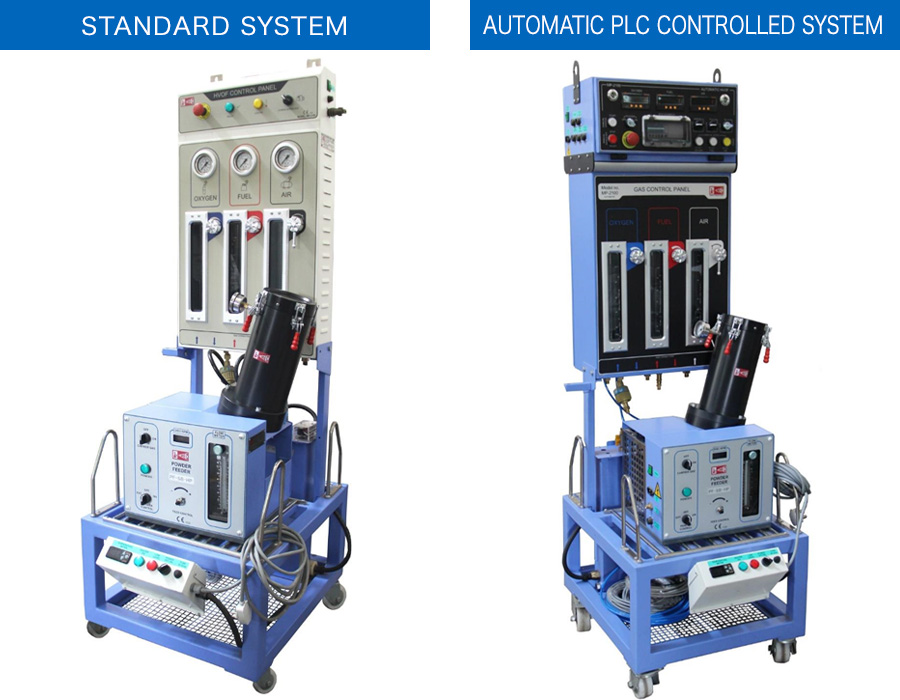

SYSTEM COMPONENT
| System consists of | |
|---|---|
| 1. | Type HP-2700 Hybrid HVOF Gun |
| 2. | Type MP-2100 Control Console |
| 3. | Type PF-SB-3355-A Powder Feeder |
| 4. | Type CAC Air Control Unit |
| 5. | Type CGO-H High Throughput Gas Regulator（O2, LPG, N2） |
| 6. | Hose Unit for O2, LPG & Air |
| 7. | Water Cooled Jacket (Hybrid) |
| 8. | Type HY-2100 Water Jam Box |
| 9. | Portable Trolley with Caster & Panel Stand |
