The MPS-80 plasma spray system is a maintenance and operation friendly system and is excellent suited for job-shops and mass-production applications requiring high level of flexibility and repeatability.

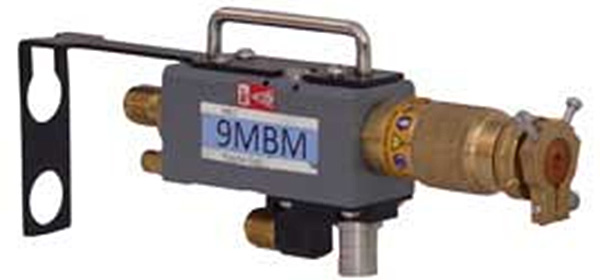

PLASMA SPRAY GUN
TYPE 9MBM
PLASMA SPRAY GUN
- Achieve high plasma gas velocity with increased spray rate and optimum performance upto 80 kW power rating
- High heat output capabilities - Plasma gas temperature upto 16,000 °C
- High Plasma gas velocity - in access of 3,000 m/s.
- High particle velocity - upto 600 m/s

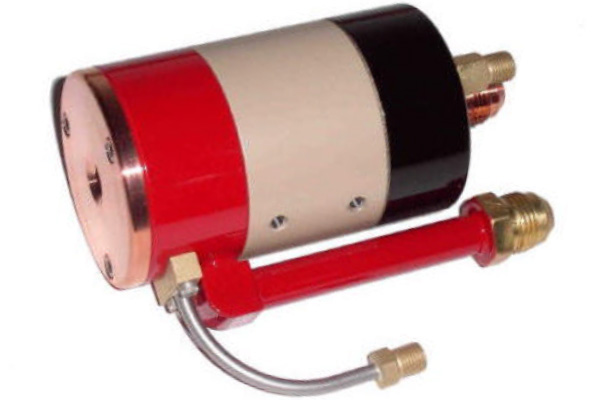

TYPE MSG-100
PLASMA SPRAY GUN
- MSG-100 is a multi-purpose plasma spray gun able to produce spray velocity of subsonic, MACH I and MACH II
- Optimum performance up to 80 kW power rating
- Capable of uniform and repeatable coating

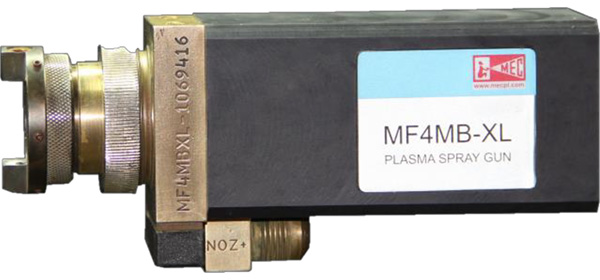

TYPE MF4MB-XL
PLASMA SPRAY GUN
- The Plasma MF4MB-XL is a robust, well proven & universal gun to produce high quality plasma coatings up to 55 kW power rating.
CONTROL MODULE / WATER JAM BOX / PLASMA POWER SUPPLY / POWDER FEEDER

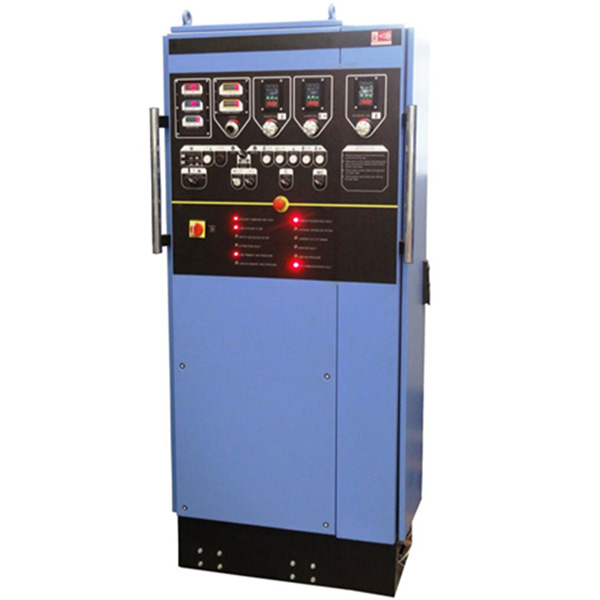

TYPE PSC-50/100M
PLASMA CONTROL MODULE

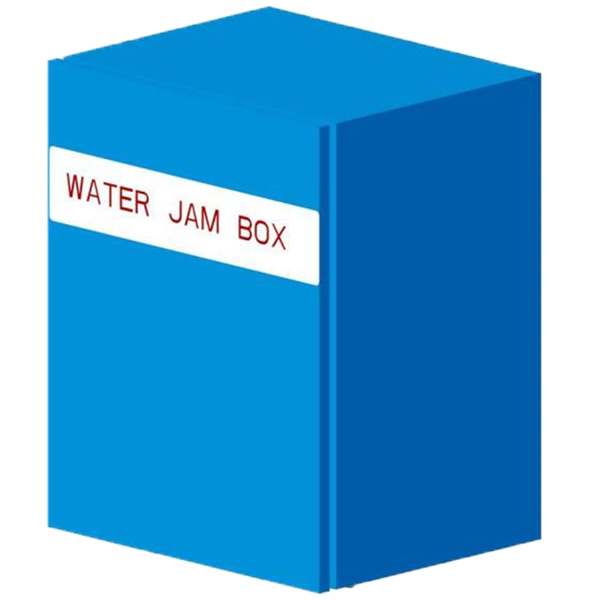

TYPE JBM
WATER JAM BOX

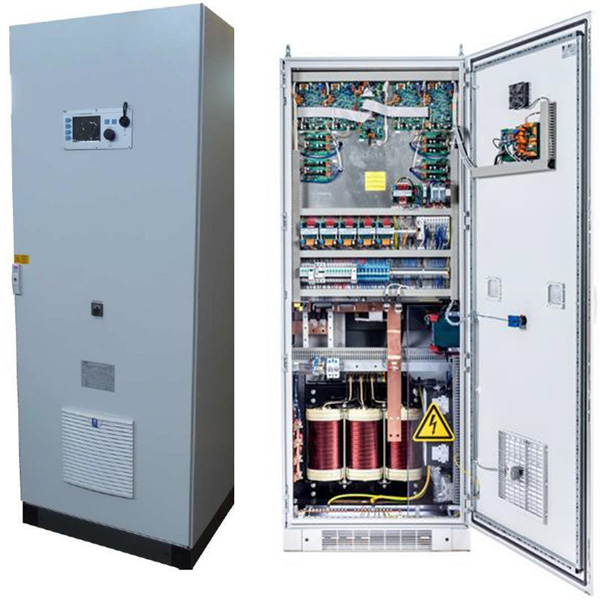

TYPE PS-80
PLASMA POWER SUPPLY

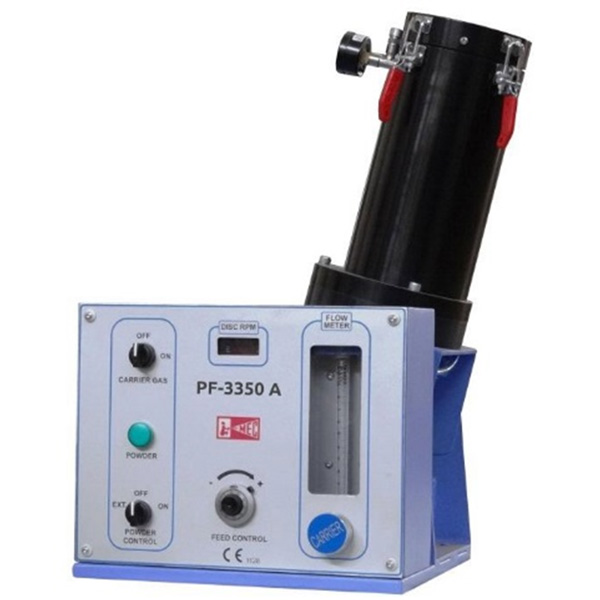

Type PF-SB-3355-A
POWDER FEEDER

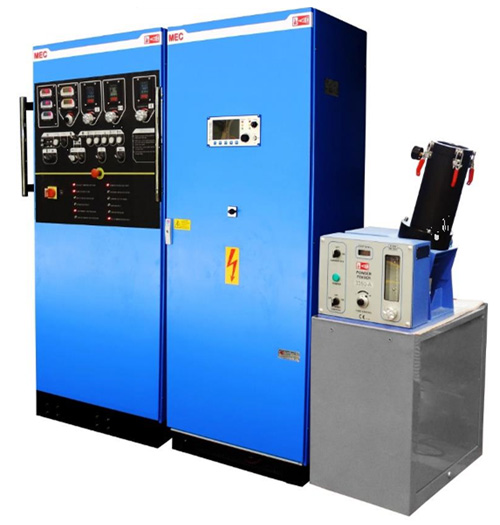

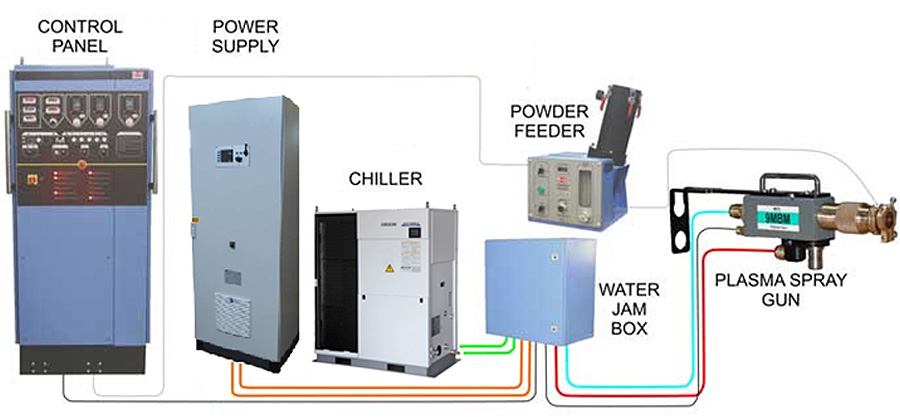

SYSTEM COMPONENT
| System consists of | ||
|---|---|---|
| 1. | Type 9MBM/MSG-100/MF4MB-XL | Plasma Spray Gun |
| 2. | Type PSC-50/100M | Plasma Control Module |
| 3. | Type JBM | Water Jam Box |
| 4. | Type PS-80 | Plasma Power Supply |
| 5. | Type PF-SB-3355-A | Powder Feeder |
| 6. | Type MCHP | Cable and Hose Package |
| 7. | Type MPS | Auxiliary Package |
| 8. | Type SWK | Operator’s Safety Wears |

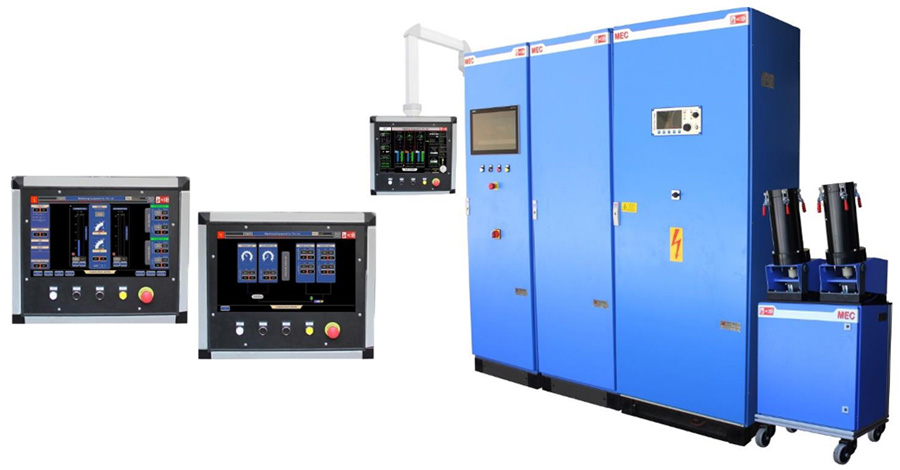

MASS FLOW CONTROLLED VERSION
